TITPS92551450mA23W恒流微模块LED驱动解决方案

来源:chinaaet发布时间:2012-06-06191浏览

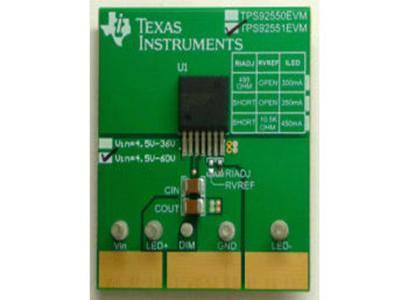

The TPS92551 Constant Current Buck LED Driver Micro-Module drives maximum 450mA LED current up to 16 LEDs in a single string (maximum 23W). It integrates all the power components including the power inductor. The TPS92551 provides a full turn-key, highly efficient solution for wide range of single string LED lighting applications with up to 95% power efficiency. It accepts an input voltage ranging from 4.5V to 60V and delivers a 350mA LED current as default. The LED current is adjustable from 300mA to 450mA by charging a single external resistor.

The module operates at constant switching frequency (800kHz) with low Electro Magnetic Interference(EMI) complying with EN55015 standard. The module has fast control loop to realize fine LED current pulse yielding 256–step PWM dimming resolution at 240Hz for general lighting. Protection features include thermal shutdown, input under-voltage lockout, LED open-circuit and short-circuit protections. The TPS92551 Micro-Module is available in TO-PMOD 7 pin power package.

TPS92551封装亮点:

■ 7 lead easy-to-use package (Similar to TO-263)

■ Single exposed die attach pad for enhanced thermal performance 10.2 x 13.8 x 4.6 mm package

TPS92551主要特性:

■ Integrated all power components including the power inductor

■ Wide input voltage range : 4.5V - 60V

■ Constant switching frequency at 800kHz

■ High contrast ratio (Minimum dimming current pulse width < 16μs)

■ Drives up to 16 LEDs in series at 60V input

■ ÷3.5% typical LED current accuracy

■ LED current adjustable from 300mA to 450mA

■ Up to 95% efficiency

■ Input Under-Voltage Lock-Out (UVLO)

■ Compatible with ceramic and low ESR capacitors

■ Low Electro Magnetic Interference (EMI) complies with EN55015 standard

■ LED open and short circuit protections

■ Thermal shutdown and RoHS compliant

■ -40˚C to +125˚C junction temperature range

TPS92551应用:

■ General Lighting

Desk Lamps

Cabinet Lamps

Decorative Lamps

Street Lamps

■ Architecture Lighting

Recess Lights

Spot Lights

Underwater Lights
