多节锂离子聚合物电池充电器设计

       该多节锂离子聚合物电池充电器（带有电量计）设计将电池平衡和电量计方法集成于一个多节电池充电器中。

Overview

      The device is designed for battery packs with 2, 3, or 4 Li-Ion/Li-Pol cells in series. The dedicated  C-based software for real-time charging, cell-balancing and fuel gauging processes visualization and analysis is developed. The proposed device can be used as a complete battery pack  management system for notebooks, medical, industrial and other similar applications.

This battery pack management system provides:

• Correct charging of two, three, or four Li-Ion or Li-Pol cells in a series with one or more cells in parallel.
• Protection from overcharge, deep discharge, and short circuit conditions.
• Temperature detection that turns off the charging or discharging processes when battery temperature is outside the allowed temperature range.
• Cell balancing in the battery pack.
• Calculation of fuel gauge parameters including absolute capacity, state of charge, and run and charge time  remaining

This multi-cell Li-Ion/Li-Pol battery charger with cell-balancing and fuel gauge technology supports single cell batteries or battery packs with two, three, or four Li-Ion or Li-Pol cells in series. It allows you using an external supply with a wide voltage range either less than or greater than the battery pack voltage.

It provides dedicated PC-based software for real time viewing and analysis of the charge, cell-balance and fuel gauge processes.

The device can be used as a complete battery pack management system for notebooks, medical and industrial equipment, and other, similar applications.

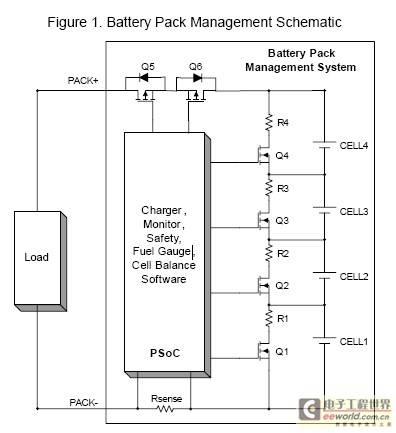

Block Diagram

Item ID:


23

Content Type:


cypress.com/Modules/Icons/Technical%20Document.bmp" title="Technical Document" width="18" /> Technical Document
Software/Firmware


Validation Level:


Developed

Designed/Tested with:



Hardware: CY8C24794 CY8C27xxx
Software: PSoC Designer version4.3 and above

Alternative Devices/Software:


Hardware: CY8C24794 CY8C27xxx
Software: PSoC Designer version4.3 and above
