Infineon ICL8001G 9W离线LED照明解方案

The ICL8001G employs quasi-resonant operation mode optimized for off-line LED lighting, especially dimmable LED bulbs for incandescent lamp replacement. Precise PWM generation enables primary control for phase cut dimming and high power factor PF>98%. Significant improved driver efficiency, up to 90%, compared to other conventional solutions. The product has a wide operation range (up to 26V) of IC voltage supply and lower power consumption. Multiple safety functions ensure a full system protection in failure situations. With its full feature set and simple application, the ICL8001G represents an outstanding choice for quasi-resonant flyback LED bulb designs combining feature set and performance at minimum BOM cost.

ICL8001G产品亮点:

• Quasi-Resonant Control For Highly Efficient LED Driving Solutions

• Primary Side Flyback Control With Integrated PFC And Phase-Cut Dimming

• Integrated HV Startup CELl For Short Time To Light

• Best In Class System BOM For Dimmable LED Bulb

ICL8001G主要特性:

• High, stable efficiency over wide operating range

• Optimized for trailing- and leading-edge dimmer

• Precise PWM for primary PFC and dimming control

• Power cell for Vcc pre-charging with constant current

• Built-in digital soft-start

• Foldback correction and cycle-by-cycle peak current limitation

• VCC over/ under-voltage lockout

• Auto restart mode for short circuit protection

• Adjustable latch-off mode for output overvoltage protection

图1. ICL8001G方框图

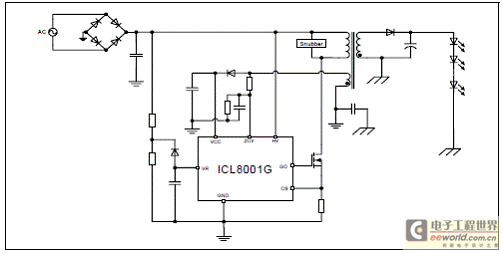

图2. ICL8001G初级边控制的应用电路图

评估板EVAL-LED-ICL8001G-Bulb02

EVAL-LED-ICL8001G-Bulb02 Quasi-Resonant Flyback Converter for Phase Cut Dimming with High Power Factor

The EVAL-LED-ICL8001G-Bulb02 demonstrates the single-stage flyback and PFC controller ICL8001G in an LED Bulb application. Its quasiresonant operation mode, primary side control, integrated PFC and phase-cut dimming control makes it the best in class system solution for dimmable LED bulbs.

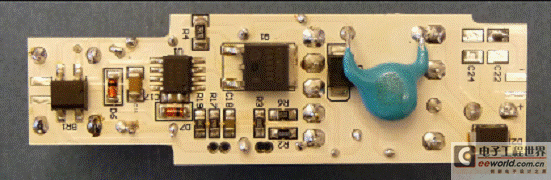

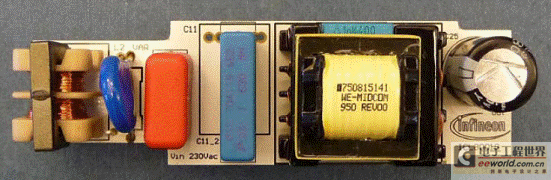

图3. 评估板EVAL-LED-ICL8001G-Bulb02外形图

评估板EVAL-LED-ICL8001G-Bulb02主要特性:

•High, stable efficiency over wide operating range through quasiresonant operation mode

•Primary side side flyback control with integrated PFC and phase-cut dimming

•Energy efficient phase cut dimming

•Power cell for VCC pre-charging with constant current

•Built-in digital soft-start

•Foldback correction and cycle-by-cycle peak current limitation

•VCC over- and under-voltage lockout

•Auto restart mode for short circuit protection

•Adjustable latch-off mode for output overvoltage protection

•Best in class system BOM for dimmable bulbs

评估板EVAL-LED-ICL8001G-Bulb02主要指标:

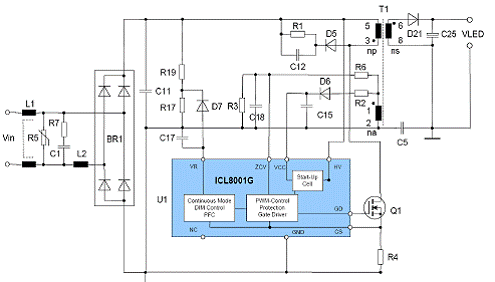

图4. 评估板EVAL-LED-ICL8001G-Bulb02电路图

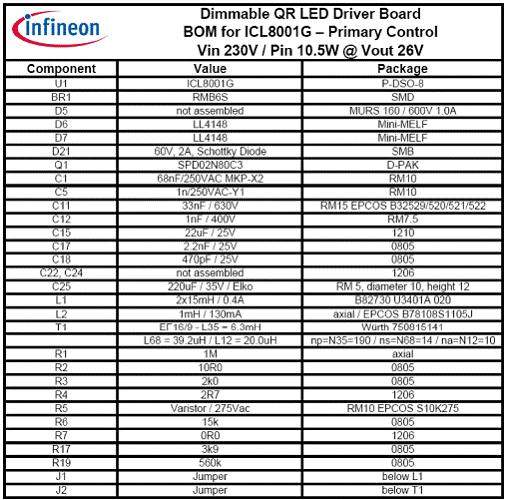

评估板EVAL-LED-ICL8001G-Bulb02材料清单:

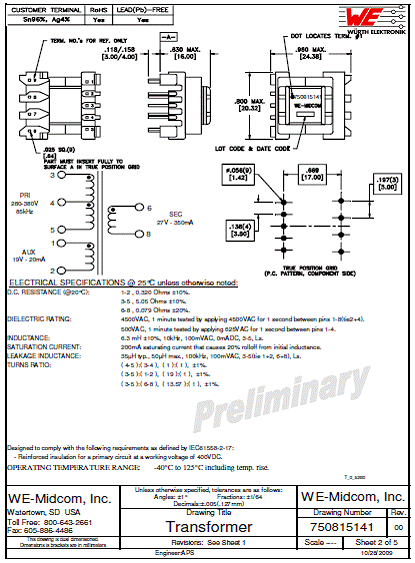

图5. 评估板EVAL-LED-ICL8001G-Bulb02变压器电路图

详情请见:
http://www.infineon.com/dgdl/Datasheet_ICL8001G+vers+1.pdf?folderId=db3a304316f66ee801178c31a9af054a&fileId=db3a3043271faefd01273dce7b0e68f6
