Green Phase-Shifted Full-Bridge Controller With Synchronous Rectification

The UCC28950 enhanced phase-shifted controller builds upon Texas Instrument’s industry standard UCCx895 phase-shifted controller family with enhancements that offer best in class efficiency in today’s high performance power systems. The UCC28950 implements advanced control of the full-bridge along with active control of the synchronous rectifier output stage.

The primary-side signals allow programmable delays to ensure ZVS operation over wide-load current and input voltage range, while the load current naturally tunes the secondary-side synchronous rectifiers switching delays, maximizing overall system efficiency.

The UCC28950 also offers multiple light-load management features including burst mode and dynamic SR on/off control when transitioning in and out of Discontinuous Current Mode (DCM) operation, ensuring ZVS operation is extended down to much lighter loads.

UCC28950主要特性:

Enhanced Wide Range Resonant Zero Voltage Switching (ZVS) Capability

Direct Synchronous Rectifier (SR) Control

Light-Load Efficiency Management Including

Burst Mode Operation

Discontinuous Conduction Mode (DCM), Dynamic SR On/Off Control

with Programmable Threshold

Programmable Adaptive Delay

Average or Peak Current Mode Control with Programmable Slope Compensation

and Voltage Mode Control

Closed Loop Soft Start and Enable Function

Programmable Switching Frequency up to 1 MHz with Bi-Directional Synchronization

(+/–3%) Cycle-by-Cycle Current Limit Protection with Hiccup Mode Support

150-µA Start-Up Current

VDD Under Voltage Lockout

Wide Temperature Range –40°C to 125°C

UCC28950应用:

Phase-Shifted Full-Bridge Converters

Server, Telecom Power Supplies

Industrial Power Systems

High-Density Power Architectures

Solar Inverters, and Electric Vehicles

图1. UCC28950方框图

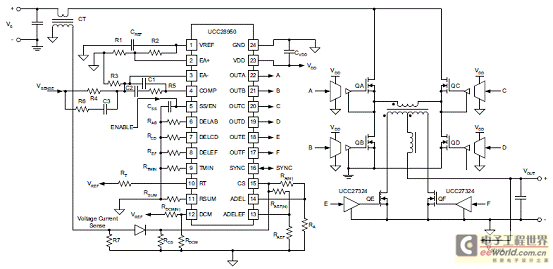

图2. UCC28950典型应用框图

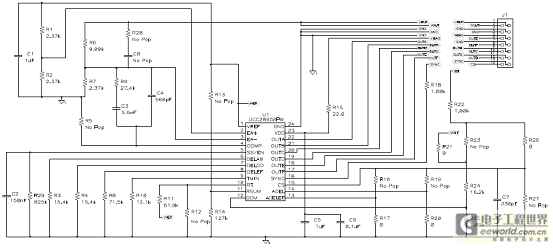

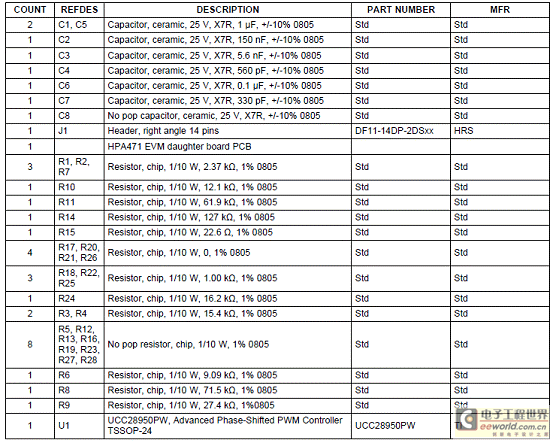

评估板UCC28950EVM-442

The UCC28950EVM-442 is a 600-W phase-shifted full-bridge converter that converts a 370 V to 410-V DC input to a regulated 12-V output. This converter was designed to maintain ZVS down to 50% load. This 600-W EVM was designed to demonstrate how the UCC28950 control device could be used in high-efficiency applications by achieving ZVS from 50% to 100% load. To achieve this high efficiency the UCC28950 was designed to drive synchronous rectifiers on the secondary side of the full bridge converter. The UCC28950 also incorporates a burst mode and DCM function to improve no-load efficiency

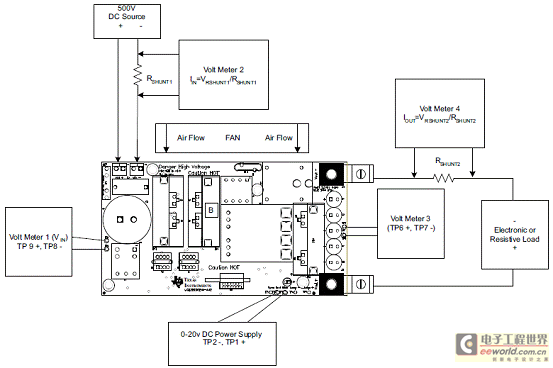

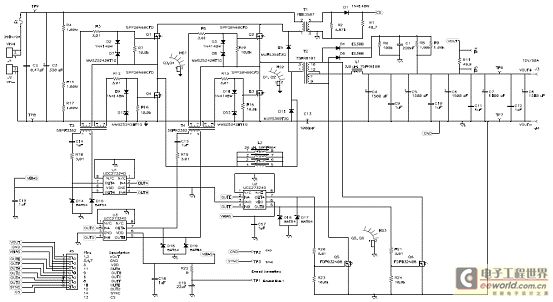

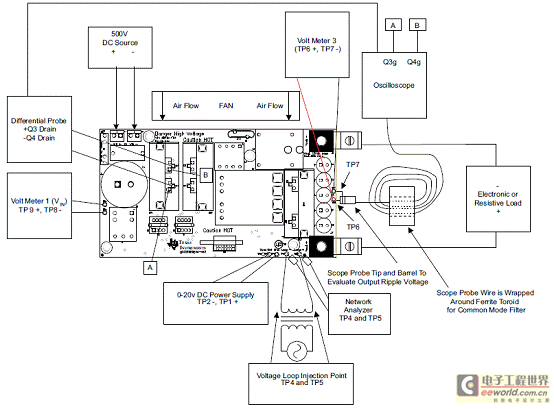

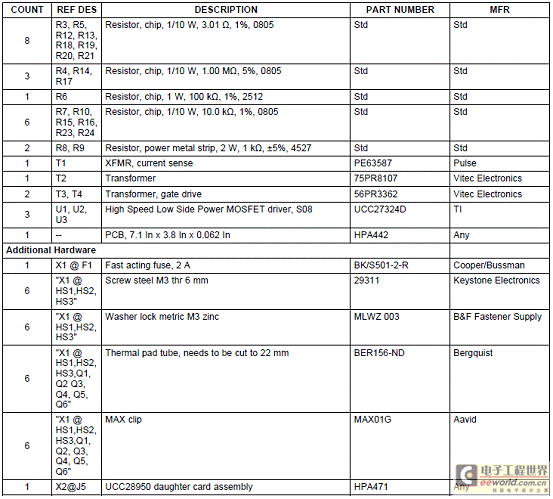

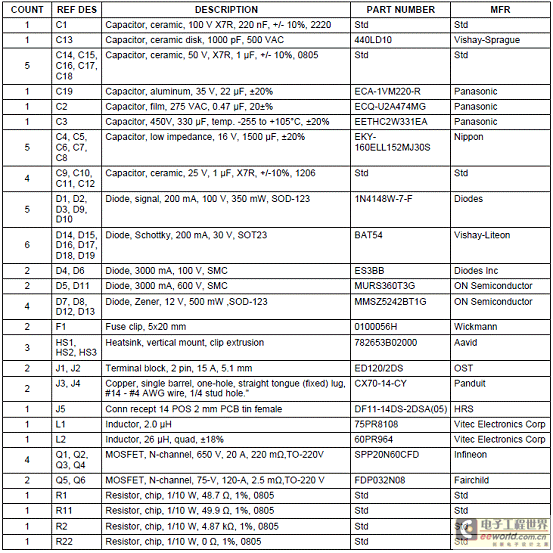

评估板UCC28950EVM-442主要特性:

ZVS from 50% to 100% load

Higher Efficiency for 80 + Applications

Burst Mode/DCM Function to Reduce No-Load Power Dissipation to Meet Green-Mode Requirements

评估板UCC28950EVM-442典型应用:

• Server, Telecom Power Supplies

• Industrial Power Systems

• High-Density Power Architectures
