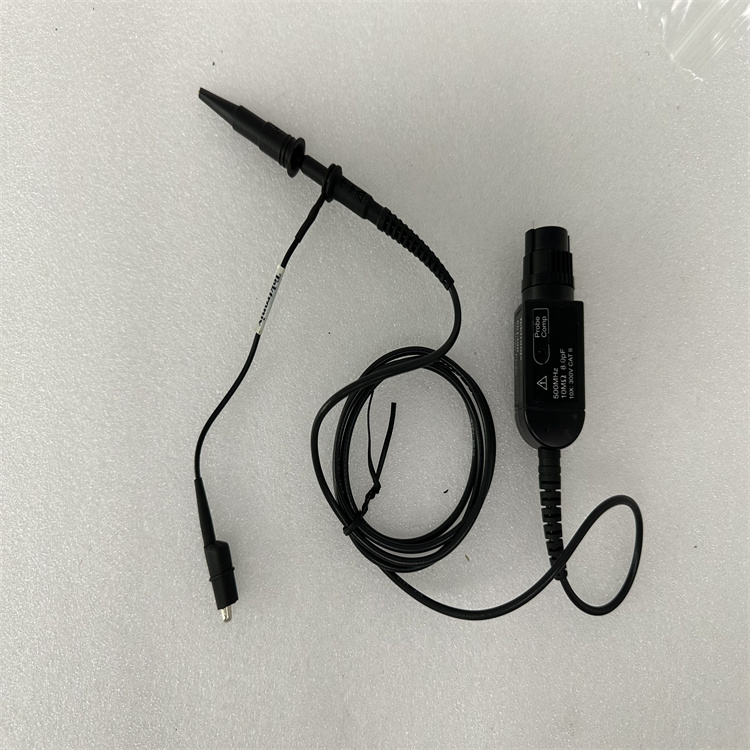

Tektronix 泰克P6139B无源探头

The P6139B and P5050B probes are high bandwidth, high impedance 10X passive voltage probes with 10 MΩ input resistance. These probes feature a small probe head and sharp tip that makes it easier to probe dense circuitry. The P6139B and P5050B share similar electrical specifications but support Tektronix oscilloscopes with different compensation ranges. Visit theOscilloscope Probe & Accessory Selector Tool located atwww.tek.com/probesto ensure the correct probe is selected for your oscilloscope.
Key performance specifications
500 MHz probe bandwidth
Large input impedance at the probe tip (10 MΩ, 8pF)
10X attenuation factor
300 v CAT II input voltage
Ease-of-use features
Compact probe head for probing small geometry circuit elements
Small probe body for enhanced visibility to the Device-Under-Test
Replaceable probe tip cartridges
Large accessory set for versatile connectivity
Connectivity
P6139B and P5050B feature the TekProbe interface for direct BNC connection for oscilloscopes with 1 MΩ inputs.
Integrated oscilloscope and probe measurement systems feature intelligent communication that automatically scales and adjusts units on the oscilloscope display.
Applications
Low power devices
Service
Manufacturing engineering
Test research and development
