询问 AI这里主要是为了记录在使用 Docker 的时候遇到的问题及其处理解决方法。
默认情况系统会将 Docker 容器存放在 /var/lib/docker 目录下
# 发现容器启动不了了
ERROR：cannot create temporary directory!
# 查看系统存储情况
$ du -h --max-depth=1
# 1.停止docker服务
$ sudo systemctl stop docker
# 2.开始迁移目录
$ sudo mv /var/lib/docker /data/
# 3.添加软链接
$ sudo ln -s /data/docker /var/lib/docker
# 4.启动docker服务
$ sudo systemctl start docker
# [方式一] 改动docker启动配置文件
$ sudo vim /lib/systemd/system/docker.service
ExecStart=/usr/bin/dockerd --graph=/data/docker/
# [方式二] 改动docker启动配置文件
$ sudo vim /etc/docker/daemon.json
{
"live-restore":true,
"graph": ["/data/docker/"]
}
# 使用mv命令
$ sudo mv /var/lib/docker /data/docker
# 使用cp命令
$ sudo cp -arv /data/docker /data2/docker
Increase Docker container size from default 10GB on rhel7.
# 查看物理磁盘空间
$ df -Th
Filesystem Size Used Avail Use% Mounted on
/dev/vda1 40G 40G 0G 100% /
tmpfs 7.8G 0 7.8G 0% /dev/shm
/dev/vdb1 493G 289G 179G 62% /mnt
# 查看基本信息
# 硬件驱动使用的是devicemapper，空间池为docker-252
# 磁盘可用容量仅剩16.78MB，可用供我们使用
$ docker info
Containers: 1
Images: 28
Storage Driver: devicemapper
Pool Name: docker-252:1-787932-pool
Pool Blocksize: 65.54 kB
Backing Filesystem: extfs
Data file: /dev/loop0
Metadata file: /dev/loop1
Data Space Used: 1.225 GB
Data Space Total: 107.4 GB
Data Space Available: 16.78 MB
Metadata Space Used: 2.073 MB
Metadata Space Total: 2.147 GB
# 显示哪些容器目录具有最大的日志文件
$ du -d1 -h /var/lib/docker/containers | sort -h
# 清除您选择的容器日志文件的内容
$ cat /dev/null > /var/lib/docker/containers/container_id/container_log_name
2019-08-16 11:11:15,816 INFO spawned:'app-demo'with pid 835
2019-08-16 11:11:16,268 INFO exited: app (exitstatus 1; not expected)
2019-08-16 11:11:17,270 INFO gave up: app entered FATAL state, too many start retries too quickly
cp: cannot create regular file'/etc/supervisor/conf.d/grpc-app-demo.conf': No space left on device
cp: cannot create regular file'/etc/supervisor/conf.d/grpc-app-demo.conf': No space left on device
cp: cannot create regular file'/etc/supervisor/conf.d/grpc-app-demo.conf': No space left on device
cp: cannot create regular file'/etc/supervisor/conf.d/grpc-app-demo.conf': No space left on device
# /etc/docker/daemon.json
{
"live-restore":true,
"storage-opt": ["dm.basesize=20G"]
}
# 1.stop the docker service
$ sudo systemctl stop docker
# 2.rm exised container
$ sudo rm -rf /var/lib/docker
# 2.edit your docker service file
$ sudo vim /usr/lib/systemd/system/docker.service
# 3.find the execution line
ExecStart=/usr/bin/dockerd
and change it to:
ExecStart=/usr/bin/dockerd --storage-opt dm.basesize=20G
# 4.start docker service again
$ sudo systemctl start docker
# 5.reload daemon
$ sudo systemctl daemon-reload
# 报错信息
No space left on device
# 查看系统的inode节点使用情况
$ sudo df -i
# 尝试重新挂载
$ sudo mount -o remount -o noatime,nodiratime,inode64,nobarrier /dev/vda1
# 每个节点信息的内容
$statcheck_port_live.sh
File: check_port_live.sh
Size: 225 Blocks: 8 IO Block: 4096 regular file
Device: 822h/2082d Inode: 99621663 Links: 1
Access: (0755/-rwxr-xr-x) Uid: ( 1006/ escape) Gid: ( 1006/ escape)
Access: 2019-07-29 14:59:59.498076903 +0800
Modify: 2019-07-29 14:59:59.498076903 +0800
Change: 2019-07-29 23:20:27.834866649 +0800
Birth: -
# 磁盘的inode使用情况
$ df -i
Filesystem Inodes IUsed IFree IUse% Mounted on
udev 16478355 801 16477554 1% /dev
tmpfs 16487639 2521 16485118 1% /run
/dev/sdc2 244162560 4788436 239374124 2% /
tmpfs 16487639 5 16487634 1% /dev/shm
Docker 命令需要对/tmp 目录下面有访问权限
# 提示错误信息
$ docker-compose --version
errorwhileloading shared libraries: libz.so.1: failed to map segment from shared object: Operation not permitted
# 重新挂载
$ sudo mount /tmp -o remount,exec
对 dockerd 的配置有可能会影响到系统稳定
# 操作容器遇到类似的错误
b'devicemapper: Error running deviceCreate (CreateSnapDeviceRaw) dm_task_run failed'
# 1.关闭docker
$ sudo systemctl stop docker
# 2.删除容器文件
$ sudo rm -rf /var/lib/docker/containers
# 3.重新整理容器元数据
$ sudo thin_check /var/lib/docker/devicemapper/devicemapper/metadata
$ sudo thin_check --clear-needs-check-flag /var/lib/docker/devicemapper/devicemapper/metadata
# 4.重启docker
$ sudo systemctl start docker
不停止服务器上面运行的容器，重启 dockerd 服务是多么好的一件事
# Keep containers alive during daemon downtime
$ sudo vim /etc/docker/daemon.yaml
{
"live-restore":true
}
# 在守护进程停机期间保持容器存活
$ sudo dockerd --live-restore
# 只能使用reload重载
# 相当于发送SIGHUP信号量给dockerd守护进程
$ sudo systemctl reload docker
# 但是对应网络的设置需要restart才能生效
$ sudo systemctl restart docker
# /etc/docker/daemon.yaml
{
"registry-mirrors": ["https://vec0xydj.mirror.aliyuncs.com"], # 配置获取官方镜像的仓库地址
"experimental":true, # 启用实验功能
"default-runtime":"nvidia", # 容器的默认OCI运行时(默认为runc)
"live-restore":true, # 重启dockerd服务的时候容易不终止
"runtimes": { # 配置容器运行时
"nvidia": {
"path":"/usr/bin/nvidia-container-runtime",
"runtimeArgs": []
}
},

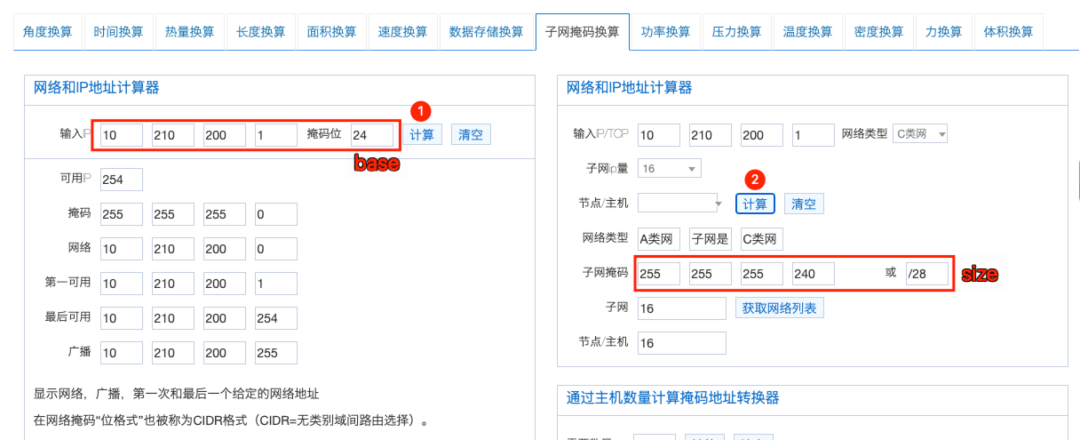

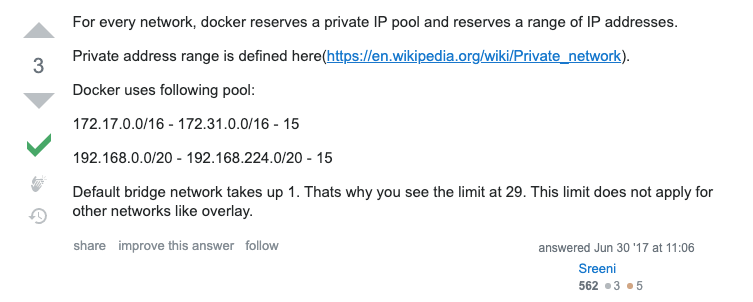

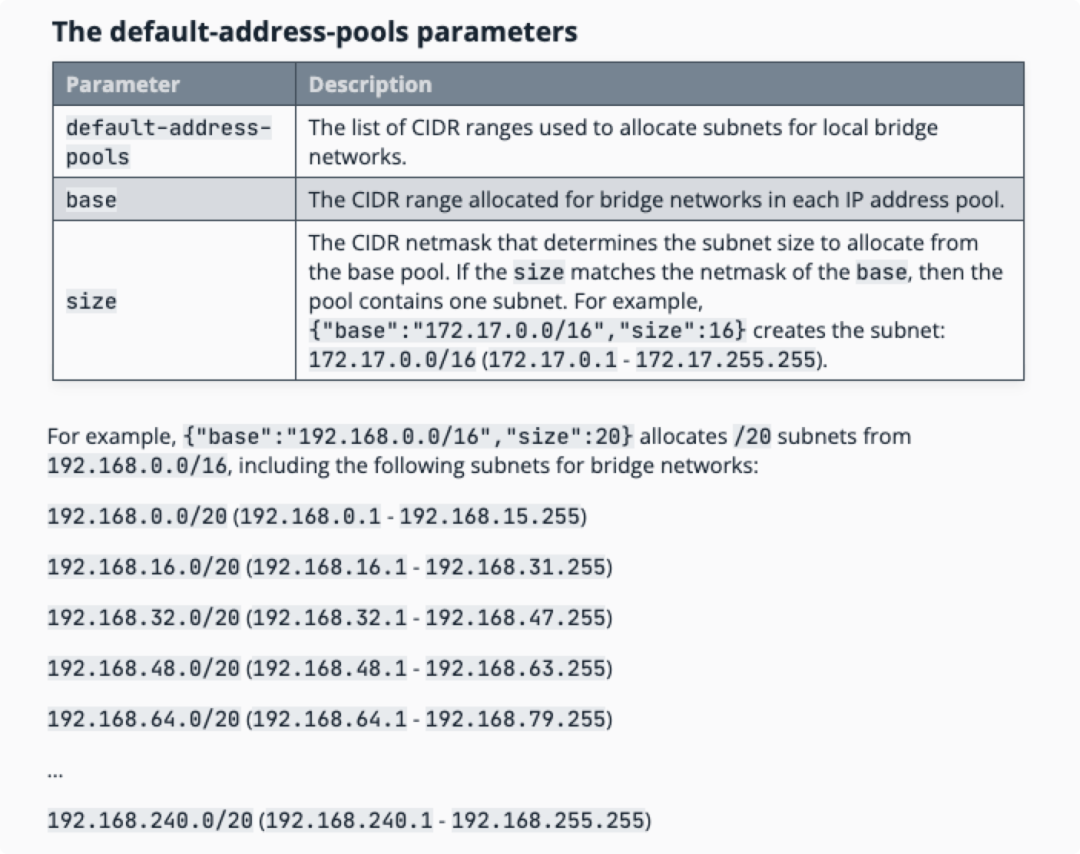

"default-address-pools": [ # 配置容器使用的子网地址池
{
"scope":"local",
"base":"172.17.0.0/12",
"size":24
}
]
}
$ vim /etc/docker/daemon.json
{
"default-address-pools": [
{
"base":"172.240.0.0/16",
"size": 24
}
]
}
找不到对应容器进程是最吓人的
# 删除容器
$ sudo docker rm -f f8e8c3..
Error response from daemon: Conflict, cannot remove the default name of the container
# 删除容器文件
$ sudo rm -rf /var/lib/docker/containers/f8e8c3...65720
# 重启服务
$ sudo systemctl restart docker.service
容器存在问题话，记得优先在官网查询
# 查看容器支持的字符集
root@b18f56aa1e15:# locale -a
C
C.UTF-8
POSIX
# 临时解决
dockerexec-it some-mysql env LANG=C.UTF-8 /bin/bash
# 永久解决
docker run --name some-mysql \
-e MYSQL_ROOT_PASSWORD=my-secret-pw \
-d mysql:tag --character-set-server=utf8mb4 \
--collation-server=utf8mb4_unicode_ci
了解 Docker 的四种网络模型
# 启动Nginx服务
$ docker run -d -p 80:80$PWD:/etc/nginx nginx
server {
...
location /api {
proxy_pass http://localhost:8080
}
...
}
# 查询宿主机IP地址 => 172.17.0.1
$ ip addr show docker0
docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:d5:4c:f2:1e brd ff:ff:ff:ff:ff:ff
inet 172.17.0.1/16 scope global docker0
valid_lft forever preferred_lft forever
inet6 fe80::42:d5ff:fe4c:f21e/64 scope link
valid_lft forever preferred_lft forever
server {
...
location /api {
proxy_pass http://172.17.0.1:8080
}
...
}
# 服务的启动方式有所改变(没有映射出来端口)
# 因为本身与宿主机共用了网络，宿主机暴露端口等同于容器中暴露端口
$ docker run -d -p 80:80 --network=host$PWD:/etc/nginx nginxx
总线错误看到的时候还是挺吓人了
# 总线报错
$ inv app.user_op --name=zhangsan
Bus error (core dumped)
# 问题原因
root@18...35:/opt/app# df -TH
Filesystem Type Size Used Avail Use% Mounted on
overlay overlay 2.0T 221G 1.4T 3% /
tmpfs tmpfs 68M 0 68M 0% /dev
shm tmpfs 68M 41k 68M 1% /dev/shm
# 启动docker的时候加上--shm-size参数(单位为b,k,m或g)
$ docker run -it --rm --shm-size=200m pytorch/pytorch:latest
# 在docker-compose添加对应配置
$ shm_size:'2gb'
# 磁盘空间不足
$ df -Th
Filesystem Type Size Used Avail Use% Mounted on
overlay overlay 1T 1T 0G 100% /
shm tmpfs 64M 24K 64M 1% /dev/shm
NFS 挂载之后容器程序使用异常为内核版本太低导致的
# 报错信息
Traceback (most recent call last):
......
File"xxx/utils/storage.py", line 34,inxxx.utils.storage.LocalStorage.read_file
OSError: [Errno 9] Bad file descriptor
# 文件加锁代码
...
with open(self.mount(path),'rb') as fileobj:
fcntl.flock(fileobj, fcntl.LOCK_EX)
data = fileobj.read()
returndata
...
# https://t.codebug.vip/questions-930901.htm
$ In Linux kernels up to 2.6.11, flock() does not lock files over NFS (i.e.,
the scope of locks was limited to thelocalsystem). [...] Since Linux 2.6.12,
NFS clients support flock() locks by emulating them as byte-range locks on the entire file.
启动的容器网络无法相互通信，很是奇怪！
# 查看docker容器配置
$ cat /etc/docker/daemon.json
{
"registry-mirrors": ["https://vec0xydj.mirror.aliyuncs.com"],
"default-address-pools":[{"base":"172.17.0.0/12","size":24}],
"experimental":true,
"default-runtime":"nvidia",
"live-restore":true,
"runtimes": {
"nvidia": {
"path":"/usr/bin/nvidia-container-runtime",
"runtimeArgs": []
}
}
}

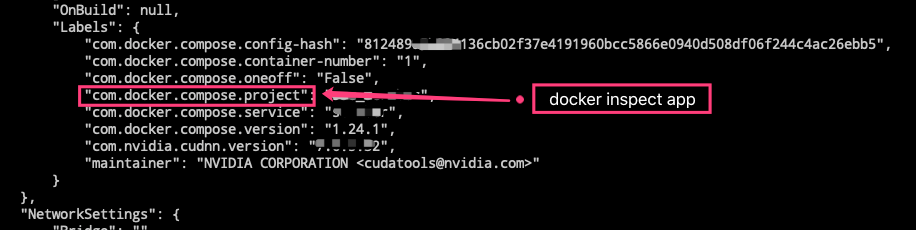

使用 docker-compose 命令各自启动两组服务，发现服务会串台！
# 服务目录结构如下所示
A: /data1/app/docker-compose.yml
B: /data2/app/docker-compose.yml
# 可以将目录结构调整为如下所示
A: /data/app1/docker-compose.yml
B: /data/app2/docker-compose.yml
A: /data1/app-old/docker-compose.yml
B: /data2/app-new/docker-compose.yml
# 指定项目项目名称
$ docker-compose -f ./docker-compose.yml -p app1 up -d

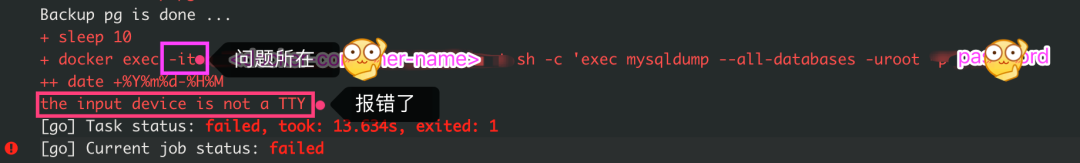

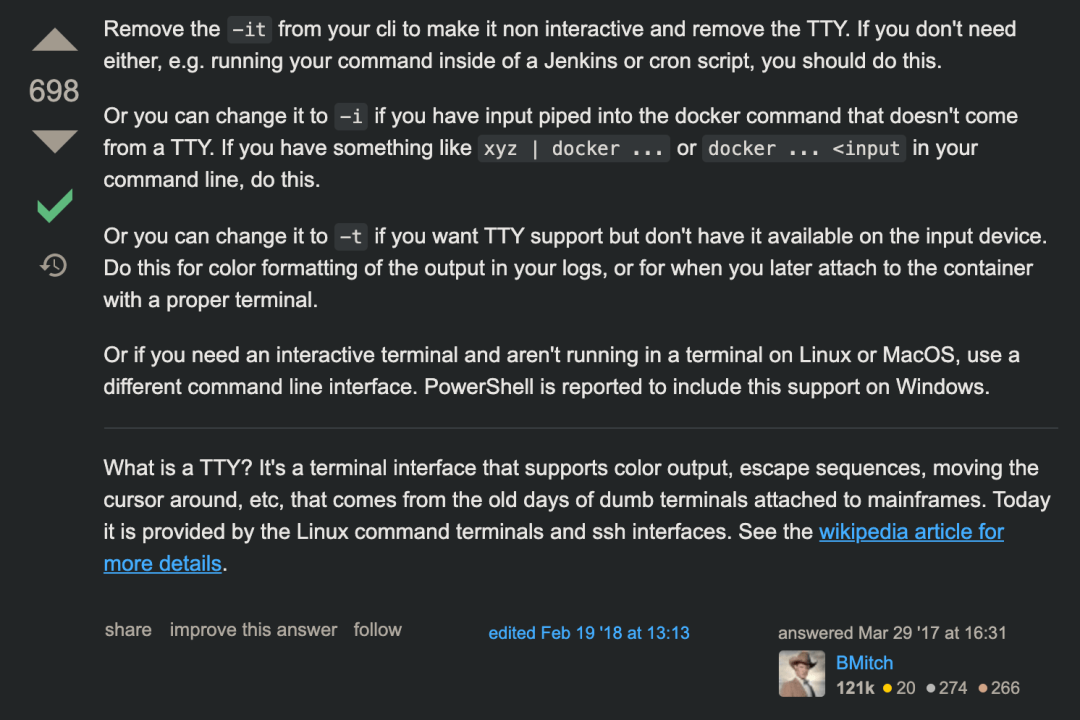

在编写脚本的时候常常会执行 docker 相关的命令，但是需要注意使用细节！
# 脚本调用docker命令
dockerexec-it <container_name> psql -Upostgres ......
在 Crontab 定时任务中也存在 Docker 命令执行异常的情况！
# Crontab定时任务
0 */6 * * * \
dockerexec-it <container_name> sh -c \
'exec mysqldump --all-databases -uroot -ppassword ......'
compose 里边环境变量带不带引号的问题！
# 在Compose中进行引用TEST_VAR变量，无法找到
TEST_VAR="test"
# 在Compose中进行引用TEST_VAR变量，可以找到
TEST_VAR=test
# 后来发现docker本身其实已经正确地处理了引号的使用
docker run -it --rm -e TEST_VAR="test"test:latest
无法删除镜像，归根到底还是有地方用到了！
# 删除镜像
$ docker rmi 3ccxxxx2e862
Error response from daemon: conflict: unable to delete 3ccxxxx2e862 (cannot be forced) - image has dependent child images
# 强制删除
$ dcoker rmi -f 3ccxxxx2e862
Error response from daemon: conflict: unable to delete 3ccxxxx2e862 (cannot be forced) - image has dependent child images
# 查询依赖 - image_id表示镜像名称
$ docker image inspect --format='{{.RepoTags}} {{.Id}} {{.Parent}}'$(docker image ls -q --filter since=<image_id>)
# 根据TAG删除镜像
$ docker rmi -f c565xxxxc87f
# 删除悬空镜像
$ docker rmi $(docker images --filter"dangling=true"-q --no-trunc)
切换 Docker 启动用户的话，还是需要注意下权限问题的！
# Nginx报错信息
nginx: [alert] could not open errorlogfile: open()"/var/log/nginx/error.log"failed (13: Permission denied)
2020/11/12 15:25:47 [emerg] 23#23: mkdir() "/var/cache/nginx/client_temp" failed (13: Permission denied)
user www-data;
worker_processes 1;
error_log /data/logs/master_error.log warn;
pid /dev/shm/nginx.pid;
events {
worker_connections 1024;
}
http {
include /etc/nginx/mime.types;
default_type application/octet-stream;
gzip on;
sendfile on;
tcp_nopush on;
keepalive_timeout 65;
client_body_temp_path /tmp/client_body;
fastcgi_temp_path /tmp/fastcgi_temp;
proxy_temp_path /tmp/proxy_temp;
scgi_temp_path /tmp/scgi_temp;
uwsgi_temp_path /tmp/uwsgi_temp;
include /etc/nginx/conf.d/*.conf;
}
Docker 服务在启动的时候，将地址绑定到 IPv6 地址上面了，提示报错信息！
# Docker的报错信息
docker run -p 80:80 nginx:alpine succeeds. Previously, this was failing with Error \
starting userland proxy: listen tcp6 [::]:80: socket: address family not supported by protocol.
# 操作系统配置
$ cat /etc/sysctl.conf | grep ipv6
net.ipv6.conf.all.disable_ipv6=1
version:"3"
services:
app:
restart: on-failure
container_name: app_web
image: app:latest
ports:
-"0.0.0.0:80:80/tcp"
volumes:
-"./app_web:/data"
networks:
- app_network
networks:
app_network:
# 修改配置
$ vim /etc/docker/daemon.json
{
"ipv6":false,
"fixed-cidr-v6":"2001:db8:1::/64"
}
# 重启服务
$ systemctl reload docker
# 修改系统配置
echo'1'> /proc/sys/net/ipv6/conf/lo/disable_ipv6
echo'1'> /proc/sys/net/ipv6/conf/lo/disable_ipv6
echo'1'> /proc/sys/net/ipv6/conf/all/disable_ipv6
echo'1'> /proc/sys/net/ipv6/conf/default/disable_ipv6
# 重启网络
$ /etc/init.d/networking restart
# 最后检测是否已关闭IPv6
ip addr show | grep net6
Docker 服务在启动的时候，提示超时，被直接终止了！
$ docker-compose up -d
ERROR:forxxx UnixHTTPConnectionPool(host='localhost', port=None): Read timed out. (readtimeout=70)
ERROR: An HTTP request took too long to complete. Retry with --verbose to obtain debug information.
If you encounter this issue regularly because of slow network conditions, consider setting COMPOSE_HTTP_TIMEOUT to a higher value (current value: 60).
$ sudo vim /etc/profile
exportCOMPOSE_HTTP_TIMEOUT=500
exportDOCKER_CLIENT_TIMEOUT=500
$ sudo iotop
4269 be/4 escape 15.64 K/s 0.00 B/s 0.00 % 98.36 % rg --files --hidden
4270 be/4 escape 28.15 K/s 0.00 B/s 0.00 % 97.46 % rg --files --hidden
4272 be/4 escape 31.27 K/s 0.00 B/s 0.00 % 97.39 % rg --files --hidden
4276 be/4 escape 34.40 K/s 0.00 B/s 0.00 % 96.98 % rg --files --hidden
如果发现服务都一切正常，但是无法无法访问的话，则多为网络问题！
# 部署服务架构
nginx(80) -> web1(8080)
-> web2(8081)
# 报错信息如下所示
nginx connect() failed (113: No route to host)whileconnecting to upstream
# 检查开放的端口
$ sudo firewall-cmd --permanent --zone=public --list-ports
# 开启需要路由的端口
$ sudo firewall-cmd --permanent --zone=public --add-port=8080/tcp
$ sudo firewall-cmd --permanent --zone=public --add-port=8081/tcp
# 配置立即生效
firewall-cmd --reload
# 关闭防火墙
$ sudo systemctl stop firewalld.service
# 禁用自启动
$ sudo systemctldisablefirewalld.service
新初始化的机器，无法获取私有仓库的镜像文件！
# 登录私有仓库
$echo'123456'| docker login -u escape --password-stdin docker.escapelife.site
# 异常信息提示
$ sudo docker pull docker.escapelife.site/app:0.10
Error response from daemon: manifestfordocker.escapelife.site/app:0.10 not found: manifest unknown: manifest unknown
# 登录私有仓库之后会在用户家目录下生成一个docker配置
# 其用来记录docker私有仓库的登录认证信息(是加密过的信息但不安全) => base64
$ cat .docker/config.json
{
"auths": {
"docker.escapelife.site": {
"auth":"d00u11Fu22B3355VG2xasE12w=="
}
}
}
如何使使用 docker-compose 启动的容器服务 hang 住而不退出
➜ docker ps -a
4e6xxx9a4 app:latest"/xxx/…"26 seconds ago Restarting (1) 2 seconds ago
# 类似原理
docker run -it --rm --entrypoint=/bin/bash xxx/app:latest
# 使用Command命令
tty:true
command: tail -f /dev/null
# 使用Entrypoint命令
tty:true
entrypoint: tail -f /dev/null
# Compose
version:"3"
services:
app:
image: ubuntu:latest
tty:true
entrypoint: /usr/bin/tail
command:"-f /dev/null"
# K8S
apiVersion: v1
kind: Pod
metadata:
name: ubuntu
spec:
containers:
- name: ubuntu
image: ubuntu:latest
command: ["/bin/bash","-c","--"]
args: ["while true; do sleep 30; done;"]
# command: ["sleep"]
# args: ["infinity"]
有些情况，内部规划的网段和可能和 Dockerd 默认的网段有冲突，导致异常出现！
➜ nc -v 172.16.100.12 8000
nc: connect to 172.16.100.12 port 8000 (tcp) failed: Connection refused
$ python -m SimpleHTTPServer 8000
Serving HTTP on 0.0.0.0 port 8000 ...
➜ nc -v 172.16.100.12 8000
Connection to 172.16.100.12 8000 port [tcp/*] succeeded!
# 修改配置
$ sudo cat /etc/docker/daemon.json
{
"default-address-pools":[{"base":"192.168.100.0/20","size":24}]
}
# 重启服务
$ sudo systemctl restart docker
# 启动服务验证是否生效
$ ip a
$ docker network inspect app | grep Subnet
# 报错信息
Error response from daemon: could not find an available, non-overlapping IPv4 address pool among the defaults to assign to the network
# 按照下图我们可以对 pool 进行合理划分
# 给定 10.210.200.0 + 255.255.255.0 的网段来划分子网
$ sudo cat /etc/docker/daemon.json
{
"default-address-pools":[{"base":"10.210.200.0/24","size":28}]
}
有些情况，我们服务器上面需要使用内部私有的容器镜像地址！
# 拉取/登陆私库时提示
$ docker pull 192.168.31.191:5000/nginx:latest
x509: certificate signed by unknown authority
# 添加配置
$ sudo cat /etc/docker/daemon.json
{
"insecure-registries": ["192.168.31.191:5000"]
}
# 重启docker
$ sudo systemctl restart docker
# 重新登录即可
$ docker login 私库地址 -u 用户名 -p 密码
//blog.csdn.net/yugemengjing/article/detai
有收获，点个在看
新闻来源：开源Linux，文中所述为作者独立观点，不代表icspec立场。更多精彩资讯请下载icspec App。如对本稿件有异议，请联系微信客服specltkj。
暂无评论哦，快来评论一下吧！
2026-06-18
