TIUCC28810110W离线LED照明解决方案

TI公司的UCC28810和UCC28811是通用照明电源控制器,能以临界导通模式控制反激,降压或升压转换器,集成了用于反馈误差处理的跨导电压放大器,参考电流发生器,电流检测(PWM)比较器,PWM逻辑和用来驱动外接FET的图腾柱驱动器.主要用在HB LED照明,工业,商业和住宅区照明以及室外照明.本文介绍了UCC28810/1主要特性, 方框图, 简化应用电路图以及110W离线AC/DC LED驱动器UCC28810EVM-003主要特性,电路图,材料清单和PCB布局图.

The UCC28810 and UCC28811 are general lighting power controllers for low to medium power lumens applications requiring power factor correction and EMC compliance. It is designed for controlling a flyback, buck or boost converter operating in critical conduction mode. It features a transconductance voltage amplifier for feedback error processing, a simple current reference generator for generating a current command proportional to the input voltage, a current-sense (PWM) comparator, PWM logic and a totem-pole driver for driving an external FET.

In the critical conduction mode operation, the PWM circuit is self-oscillating with the turn-on being governed by a transformer zero energy detector (TZE pin) and the turn-off being governed by the current sense comparator.

UCC28810/1主要特性:

Transition Mode Controller for Low Implementation Cost of AC Input LED Lighting Applications

Implements Single Stage Power Factor Corrected LED Driver

Enhanced Transient Response With Slew-Rate Comparator

Interfaces with Traditional Wall Dimmers

Accurate Internal VREF for Tight Output Regulation

Two UVLO Options

Overvoltage Protection (OVP), Open-Feedback Protection and Enable Circuits

±750-mA Peak Gate Drive Current

Low Start-Up and Operating Currents

Lead (Pb)-Free Packages

UCC28810/1应用:

AC Input General Lighting Applications Using HB LEDs

Industrial, Commercial and Residential Lighting Fixtures

Outdoor Lighting: Street, Roadway, Parking, Construction and Ornamental LED Lighting Fixtures

图1. UCC28810/1方框图

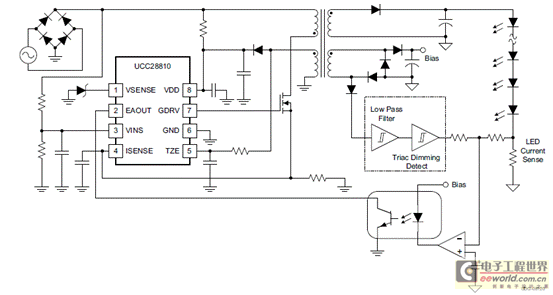

图2. UCC28810/1简化应用电路图

110W离线AC/DC LED驱动器UCC28810EVM-003

The UCC28810EVM-003 is an 110-W offline AC-to-DC LED current driver with power factor correction. This design utilizes a three stage approach with a universal input boost PFC stage, a low-side buck stage providing a controlled current source and a half-bridge DC transformer stage to provide isolation to four LED strings.

This converter was designed to support up to four strings of 15 high brightness LED’s in series (58.5 V max per string). The converter will provide 500-mA average current to each string. The design incorporates an interface for microprocessor control to allow for shutdown into a low power mode (<0.5 W) and PWM dimming of the LED’s.

The boost, buck and DC half bridge multi-transformer stages are included on a UCC28810EVM-003 single board assembly.

UCC28810EVM-003主要特性:

90-VRMS to 265-VRMS Operation

Boost Follower or Fixed Output PFC Stage

PFC Disable

Output Current Disable

External or Internal PWM Dimming

Output Isolated from Line Input

Open Circuit Protection (If one LED string fails open the remaining strings stay on.)

UCC28810EVM-003典型应用:

• AC Input General Lighting Applications Using HB LEDs

• Industrial, Commercial and Residential Lighting Fixtures

• Outdoor Lighting: Street, Roadway, Parking, Construction and Ornamental LED Lighting Fixtures

• LCD TV LED Backlighting

图3.UCC28810EVM-003外形图

图4.UCC28810EVM-003单板装配图

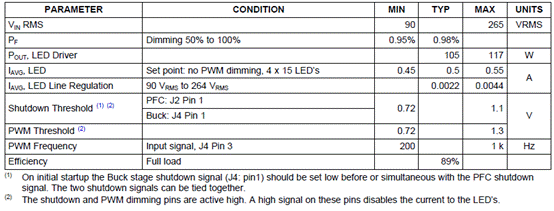

UCC28810EVM-003电性能指标:

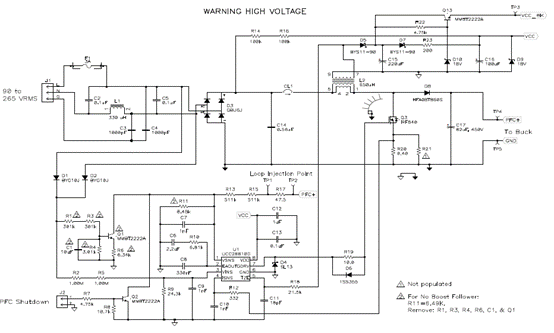

图5.UCC28810EVM-003 PFC级电路图

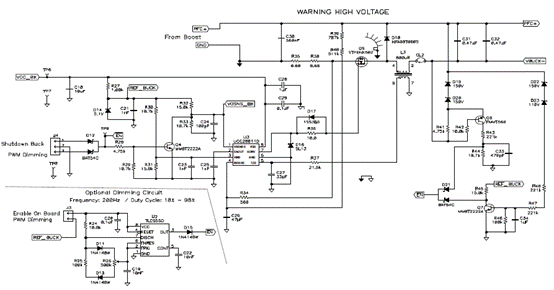

图6.UCC28810EVM-003降压级电路图

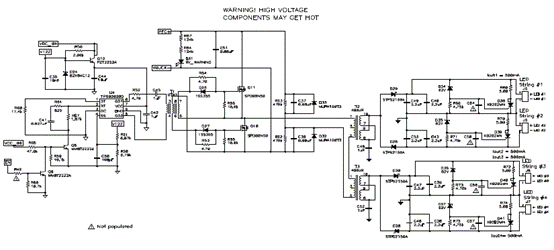

图7.UCC28810EVM-003 DC变压器电路图

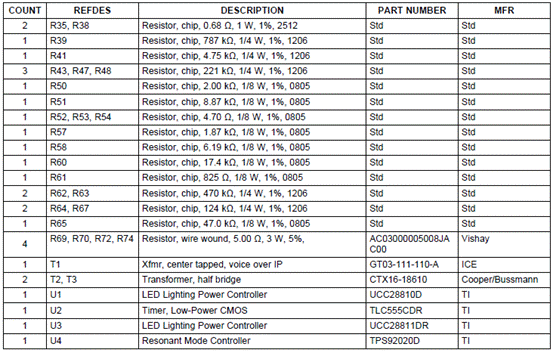

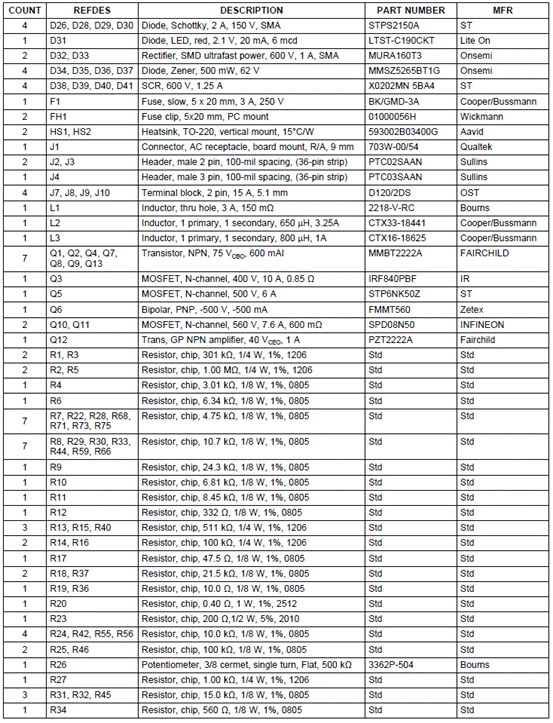

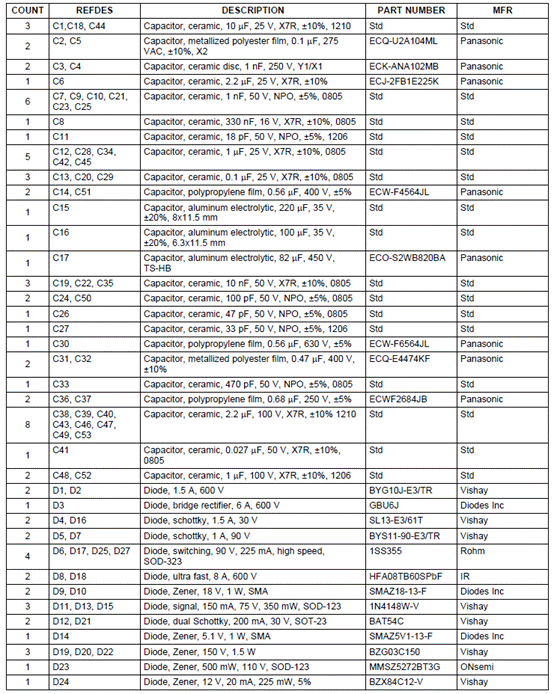

UCC28810EVM-003材料清单:






图8.UCC28810EVM-003 PCB布局图(上:顶层元件布局,中:顶层铜布线,下:底层铜布线)
详情请见:
http://www.ti.com/lit/ug/sluu380b/sluu380b.pdf
